Plug in and get hooked

Soar up trails, through town, and everywhere in between with the ultimate do-anything e-MTB. Marlin+ is an electric hardtail that gives you all the versatility you crave and adds in a simple boost for flattening climbs and cruising with ease. You get features that matter most, like a Bosch drive unit and a confident and capable bike frame without the hefty price tag. Are you ready to get hooked?

• 29″(XS & S: 27.5″)Wheel size
• 120mmFront suspension
• BoschMotor
• 50NmTorque
• 400WhBattery size

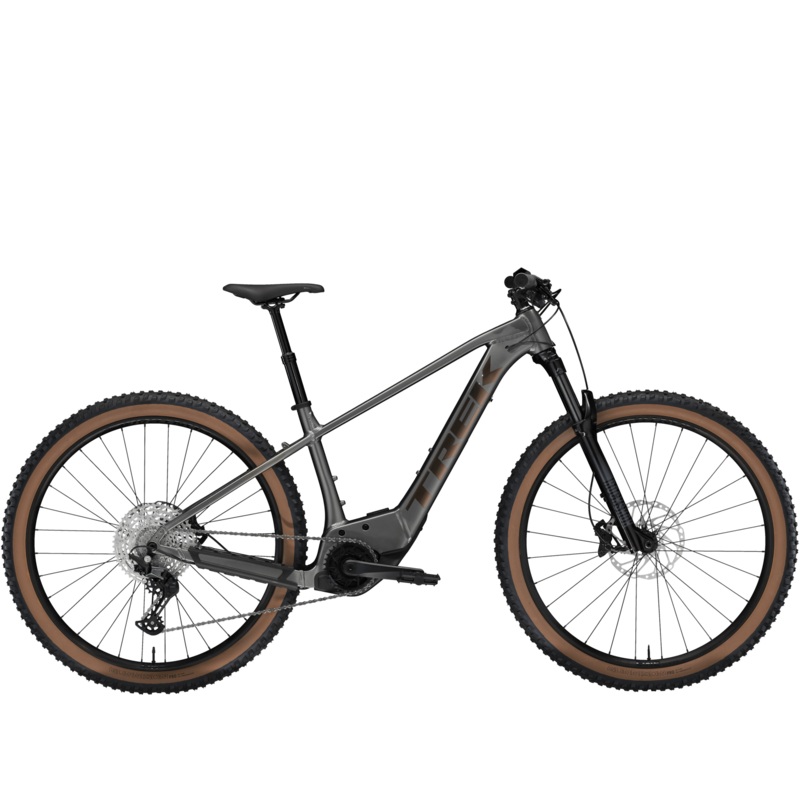

Marlin+ 8 is an electric mountain bike that’s ready to up your game on the trail. Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding farther, and doesn’t break the bank, and a 120mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tires and a 12-speed Shimano drivetrain make this a trail-savvy ride that’s ready to go anywhere.

Frameset

*FrameSize:XS
Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axleSize:M , L , S , XL
Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle*ForkSize:XS
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 100mm travelSize:S
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 120mm travelSize:M , L , XL
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel

Wheels

Hub frontShimano TC500 alloy, centerlock, 110x15mm thru axleHub rearShimano TC500 alloy, centerlock, 148x12mm thru axleSkewer rearBontrager Switch thru axle, removable lever*RimSize:M , XS , L , S , XL
Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valveSize:M , XS , L , S , XL
Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve*TireSize:XS , S
Bontrager Gunnison Pro XR, Tubeless Ready, Inner Strength sidewalls, aramid bead, 60 tpi, 27.5×2.60″Size:M , L , XL
Bontrager Gunnison Pro XR, Tubeless Ready, Inner Strength sidewalls, aramid bead, 60 tpi, 29×2.60″Tire partBontrager TLR sealant, 180 ml/6 ozRim stripBontrager TLRMax tire sizeFrame: 29×2.60″ (XS: 27.5×2.60″), Fork: See manufacturer

E-system

BatteryBosch CompactTube 400WhChargerBosch standard 2A, 110V, smart systemComputerBosch Purion 200MotorBosch Active Line Plus, 50 Nm

Drivetrain

ShifterShimano Deore M6100, 12 speedRear derailleurShimano Deore M6100, long cageCrankFSA CK-220, 165mm lengthChain ringFSA, 32T, steelCassetteShimano Deore M6100, 10-51, 12 speedChainShimano Deore M6100, 12 speedPedalVP-536 nylon platformMax chainring size1x: 36T, min 32T

Components

*SaddleSize:M , XS , L , S , XL
Bontrager Verse P3, chromoly railsSize:M , XS , L , S , XL
Bontrager Arvada, hollow chromoly rails, 138 mm width*SeatpostSize:XS , S
TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm lengthSize:M , L , XL
TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length*HandlebarSize:XS , S
Bontrager alloy, 31.8mm, 15mm rise, 720mm widthSize:M , L , XL
Bontrager alloy, 31.8mm, 15mm rise, 750mm widthGripsBontrager XR Trail Comp, nylon lock-on*StemSize:XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm lengthSize:M , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm lengthSize:XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm lengthHeadsetSemi-integrated, sealed cartridge bearing, alloy cups, 1-1/8″ top, 1.5″ bottomBrakeShimano 4-piston hydraulic disc, MT4100 lever, MT420 caliperBrake rotorShimano RT64, CentreLock, 203 mmRotor sizeMax brake rotor sizes – Frame: 203mm, min 180mm, Fork: see fork manufacturer

Weight

WeightM – 21.49 kg / 47.38 lbs (with TLR sealant, no tubes)Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).OS2
